M24-T-000

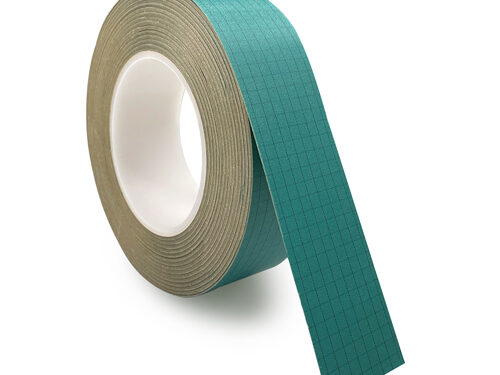

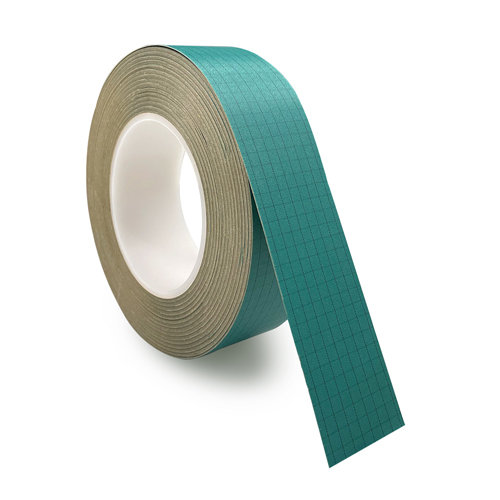

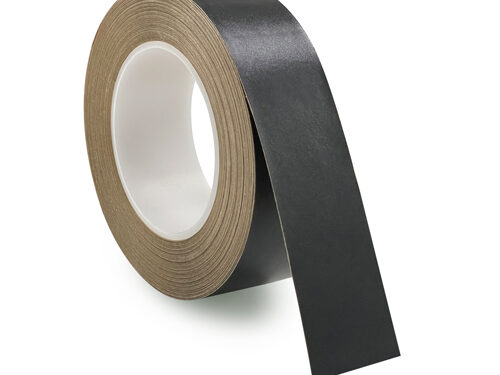

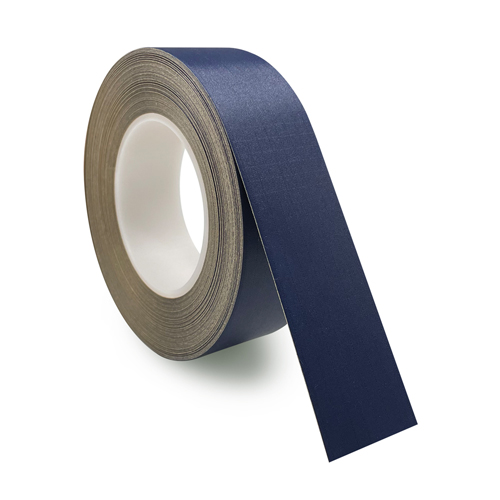

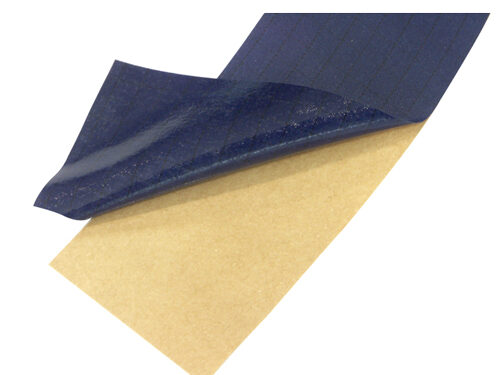

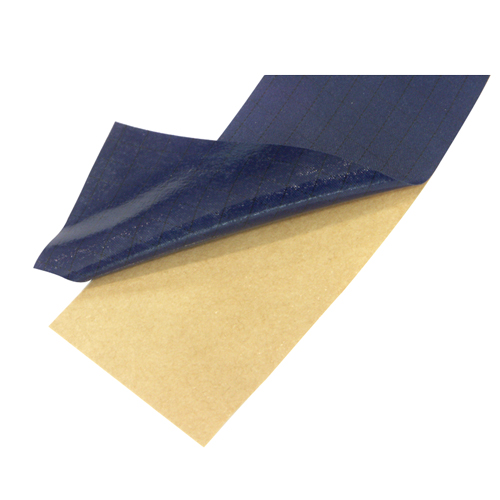

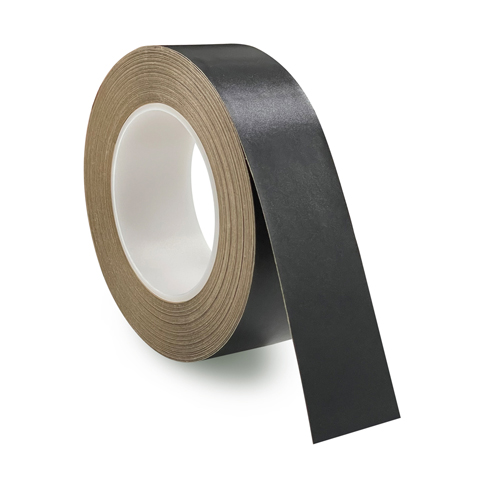

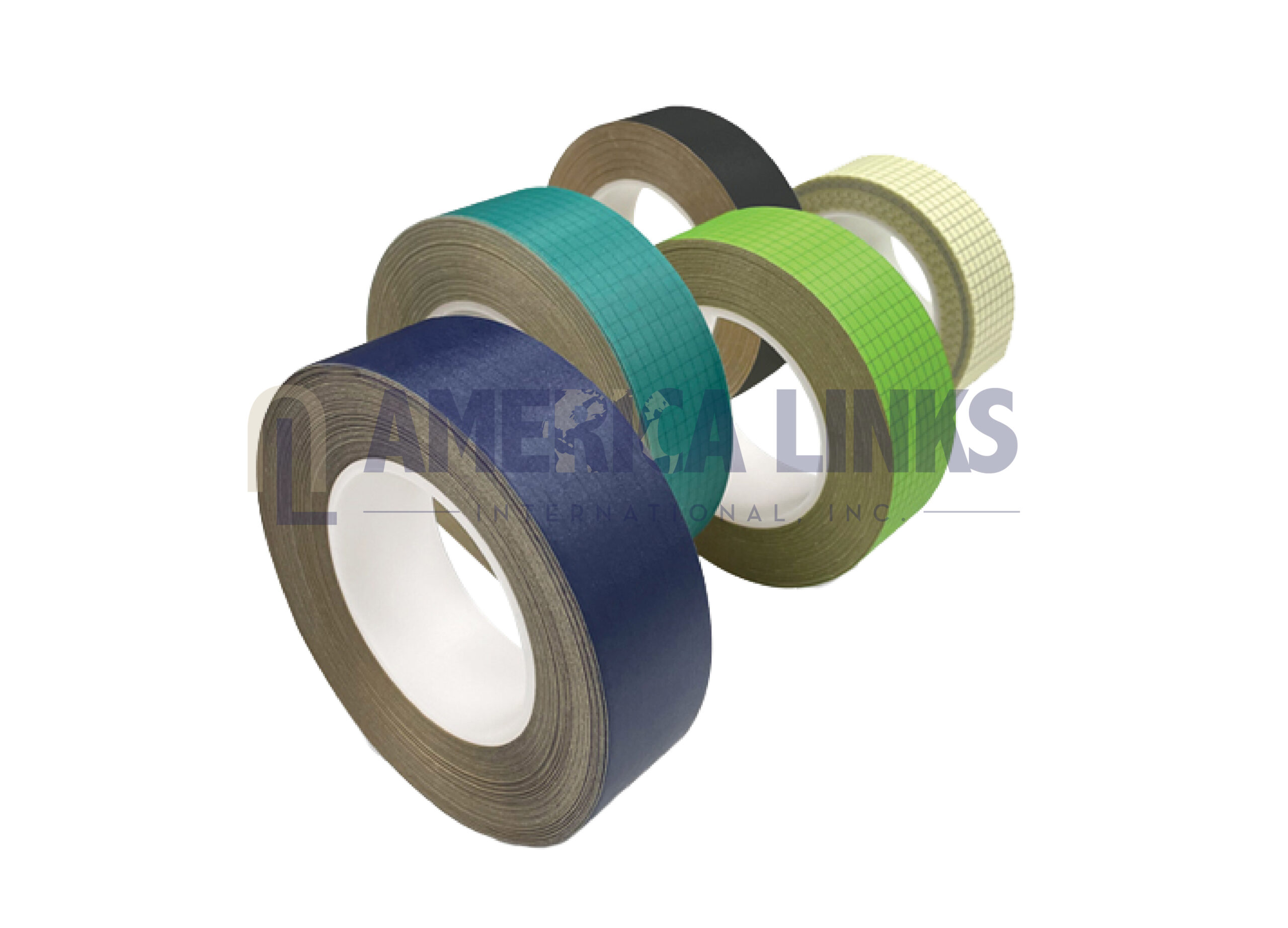

Conductive 5mm grid fabric with acrylic adhesive

Features:

  • ESD properties on both sides
  • Soft and flexible
  • No lint generation
  • No residue
  • Homogenous structures
  • Surface Resistivity: 10e6~10e8, Back-10e5~10e7 ohm/sq
  • Thickness: 200㎛
  • Adhesive level(gf/25mm): 900(SUS), 1000(PC)
  • Size: 40mm x 30m, 1000mm x 20, 50, 100m(Jumbo roll)
  • Packing: 40rolls/carton

Applications:

  • Cover the edges of the ESD EVA Mats, Pad and, other Mats
